Siemens placement machine D3

2023-10-10
5042

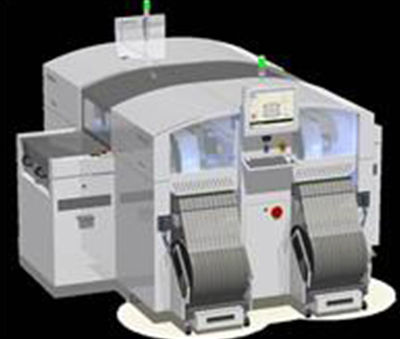

Siemens placement machine D3

Detailed introduction

  Detailed introduction of Siemens placement machine D3 , siemens SIPLACE D3 multi-function placement machine :

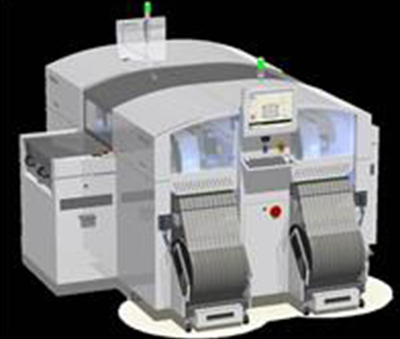

Siemens placement machine

Siemens D3, siemens SIPLACE D3 placement machine main technical parameters:


The new SIPLACE D3 combines greater flexibility with high speed. Equipped with a SIPLACE double head, the SIPLACE D3 can quickly handle components up to 200 mm long and up to 25 mm high with a placement pressure of up to 30 Newtons. SIPLACE D3 can even mount large
THT connectors.

Technical data:
The theoretical performance value can reach 61,000CPH,
the IPC value can reach 37,600CPH
, the accuracy is ±22μm, ±0.05゚@3
PCB size, single rail transmission 50 x 50 to 610 x 508mm,
dual rail transmission 50 x 50 to 610 x 430mm,
PCB thickness standard 0.3 to 4.5mm (others available on request)
Supply capacity 180 8mm rails Component
range 0201" - 200 x 125mm
Quality pickup rate: >/= 99.95%
DPM rate: Set power supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz
air supply 5.5bar (0.55MPa) - 10bar (1.0MPa)
Larger size 2380 x 2815 x 2112mm (LxHxW)
Mass 3790kg (basic machine with 4 feeders)
Our All SMT equipment comes from Japan or Europe. Because of its short use time and good maintenance, the SMT equipment there can be reused for a longer life, with higher precision and better stability. Therefore, it is favored by SMT buyers. .


We have about 40 after-sales service engineers to serve customers 24 hours a day. The spare parts warehouse stores a large number of replaceable parts. The electronic maintenance department can help customers repair to the board level. Respond to customers at any time and respond to their needs.


Our company specializes in selling Siemens SMT D3 and siemens SIPLACE D3 multi-function SMT machines. The company has a large inventory and a professional technical team that can answer customers' problems in a short time. New and old customers are welcome to inquire!


Shenzhen Topco Electronic Equipment Co., Ltd. specializes in providing the following SMT equipment to electronic manufacturers:

MPM printing press , Koh Young  SPI

Panasonic placement machine Fuji placement machine , Siemens placement machine

Meilu AOI , Vitronics Soltec reflow soldering

The entire SMT production line equipment, as well as spare parts, services and solutions.
