Siemens placement machine D2

2023-10-10
5020

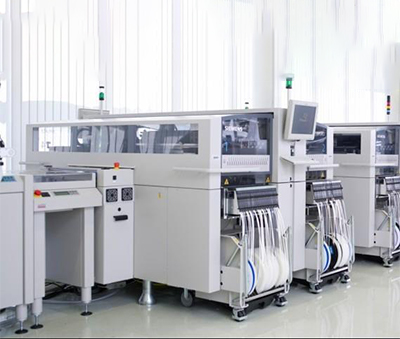

Siemens placement machine D2

Detailed introduction

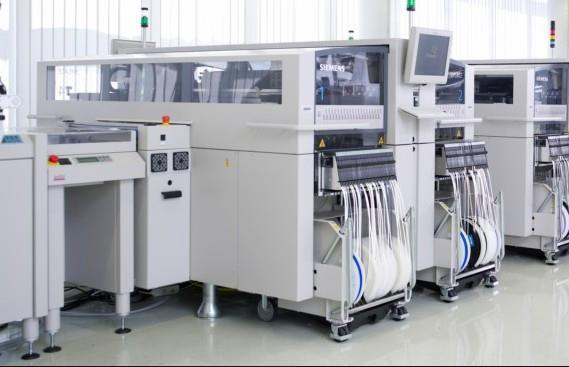

Siemens placement machine D2.png


Product Features:

Siemens SIPLACE D2 high-speed placement machine , Siemens SIPLACE D2 high-speed placement machine , has both high placement speed and high flexibility. The goal is to perfectly combine time-tested technology with many high-tech innovations. SIPLACE digital imaging system that can achieve higher placement accuracy. The latest SIPLACE software with features. SIPLACE flexible double-rail transmission system.

 Optional: SIPLACE imaging learning workstation with offline settings





Technical Parameters:

Theoretical performance value: up to 40,500CPH

 IPC value: up to 27,200CPH

Accuracy: ±50μm,±0.225゚@3δ

PCB size: single rail transmission 50 x 50 to 610 x 508mm

         Dual rail transmission 50 x 50 to 610 x 430mm

         PCB thickness standard 0.3 to 4.5mm (others available on request)

Material supply: 90 8mm rails

Component range: 01005" - 200 x 125mm

Quality: Pickup rate: >/= 99.95%

      DPM rate: settings

Power supply: 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply: 5.5bar (0.55MPa) - 10bar (1.0MPa)

Dimensions: length x height x width) larger 1587 x 2565 x 1980mm

Weight: 2343kg (basic machine with 2 feeders)



Shenzhen Topco Electronic Equipment Co., Ltd. specializes in providing the following SMT equipment to electronic manufacturers:

MPM printing press DEK printing press, Koh Young  SPI AOI

Panasonic placement machine Fuji placement machine Siemens placement machine placement machine rental

Meilu AOI , Vitronics Soltec reflow soldering , BTU reflow soldering, HELLER reflow soldering

The entire SMT production line equipment, as well as spare parts, services and solutions.
