Siemens placement machine D1

2023-10-10
4024

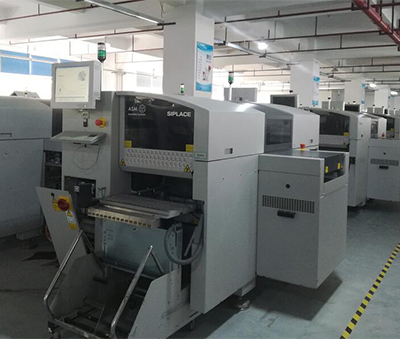

Siemens placement machine D1

Detailed introduction

Introduction:

Siemens placement machine D1 comes from Japan or Europe. The SMT equipment there has less usage time and good maintenance, so the equipment can be reused for a longer life, with higher precision and better stability. Therefore, it is favored by SMT buyers.

Our company specializes in selling Siemens placement machines D1. The company has a large inventory and a professional technical team that can answer customers' problems in a short time. We have about 40 after-sales service engineers to serve customers 24 hours a day. The spare parts warehouse stores a large number of replaceable parts. The electronic maintenance department can help customers repair to the board level.

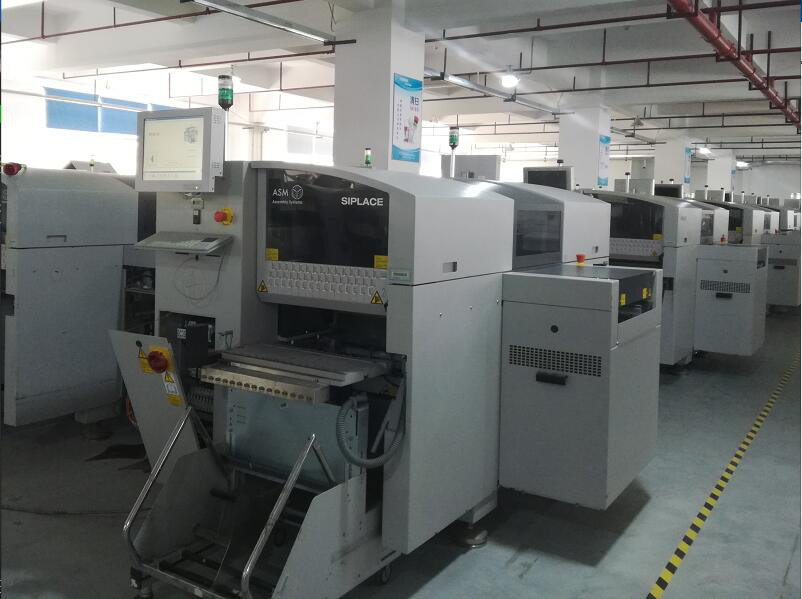

 Siemens placement machine D1.png



characteristic:

The concept of SIPLACE D1/D1s is completely new. Although it is only a single cantilever placement machine , it can be equipped with one (SIPLACE D1s) or two (SIPLACE D1) placement heads according to customer needs. Both flexible single-cantilever placement machines combine proven technology with new technology. Not only are there SIPLACE S feeders that are compatible with existing machine platforms, but there are also powerful linear drive technologies from the SIPLACE platform.

The newly developed SIPLACE pick-and-place head corresponding to complex components can achieve higher placement accuracy, the SIPLACE digital imaging system, the latest version of SIPLACE software with functions, SIPLACE flexible dual-rail transmission system, optional: SIPLACE imaging learning that can be set offline workstation.



Technical Parameters:

Theoretical performance value: up to 20,000CPH

IPC value up to: 13,000CPH

Accuracy: ±30μm,±0.05゚@3δ

PCB size: single rail transmission 50 x 50 to 610 x 508mm

Dual-rail transmission: 50 x 50 to 610 x 430mm

PCB thickness: standard 0.3 to 4.5mm (others available on request)

Material supply: 90 8mm rails

Component range: 01005" - 200 x 125mm

Quality: Pickup rate: >/= 99.95%

DPM rate: Settings: Powered by 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply: 5.5bar (0.55MPa) - 10bar (1.0MPa)

Dimensions: Larger 1587 x 2636 x 1980mm (LxHxW)

Weight: 2325kg (basic machine with 2 feeders)
