Siemens placement machine HS60

2023-10-10
5407

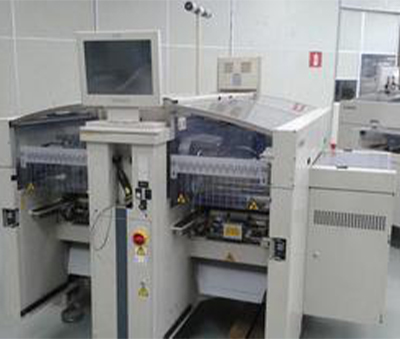

Siemens placement machine HS60

Detailed introduction

Product Features:

Siemens placement machine HS60 comes from Europe and the United States, with excellent equipment. The SMT equipment there has less usage time and good maintenance, so that the equipment can be reused for a longer life, with higher precision and better stability. Therefore, it is favored by SMT buyers.

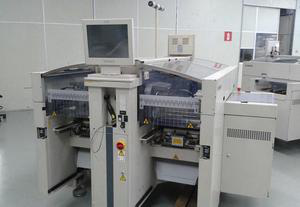

 Picture 60.png



Technical Parameters:

Siemens placement machine hs60 has 4 placement heads, 12 nozzles/head, and placement speed of 60,000 points/H. The following are the machine parameters of Siemens HS60:

Head type: 12 nozzle collection and placement head

Number of cantilevers: 4

Theoretical placement rate: 60000cph

Component range: 0.6mm x 0.3mm (0201) to 18.7mm x 18.7mm

Higher placement accuracy (4 sigma): 80/75um

PCB size that can be attached:

Single track: 50mm x 50mm to 368mm x 460mm

The width can be expanded to 508mm if necessary

When double track: 50mm x 50mm to 368mm x 216mm

The width can be expanded to 242mm if necessary

Component feeder capacity: 144 rails 8mm tape

Operating system: Microsoft Windows/RMOS

Power: 4KW

Compressed air requirements: 5.5-10bar, 950NI/min, pipe diameter 3/4



Shenzhen Topco Electronic Equipment Co., Ltd. specializes in providing the following SMT equipment to electronic manufacturers:

MPM printing press DEK printing press, Koh Young  SPI AOI

Panasonic placement machine Fuji placement machine , Siemens placement machine placement machine rental

Meilu AOI , Vitronics Soltec reflow soldering , BTU reflow soldering, HELLER reflow soldering

The entire SMT production line equipment, as well as spare parts, services and solutions.
