Siemens placement machine S25HM

2023-10-10
5353次

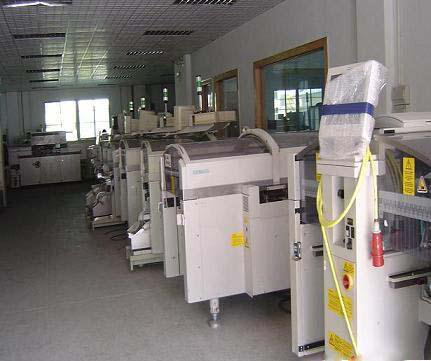

Siemens placement machine S25HM

详细介绍

Product Features:

Siemens placement machine 80S25HM comes from abroad. The Siemens placement machine 80S25HM there is favored by SMT buyers because of its short use time and good maintenance, which allows the equipment to be reused for a longer life, with higher precision and better stability.




Technical Parameters:

1. Placement head type: 6 nozzle collection and placement head or 12 nozzle collection and placement head

2. Number of cantilevers: 2

3. Placement head module: Each cantilever can be equipped with 6 or 12 nozzle collection and placement heads 12/12; 6/12; 6/6 combination

4. Placement speed (theoretical value): 25000pch

5. Feeder: 118, 8mm tape

6. SMD range: 0201 to 32 x 32 mm2 including: BGA, uBGA, etc.

7. Component height: 6 nozzle collection and patch placement head - 8.5mm 12 nozzle collection and patch placement head - 6mm

8. Mounting accuracy: 6 nozzle collection and SMD placement head: 60um/3sigma or 80um/4sigma or 120um/6sigma 12 nozzle collection and SMD placement head: 67.5um/3sigma or 90um/4sigma or 135um/ 6sigma

9. Applicable substrate: 50x50mm~ 495 x 460mm, optional length up to 610mm

10. Equipment appearance (LxWxH): 1587x2641x1950mm (including 830mm transmission height)

11.Power: 2KW

12. Compressed air requirements: 5.5~10bar, 400Nl/min, pipe diameter 1/2"

13. Operating system: Windows/RMOS 16
